Description:

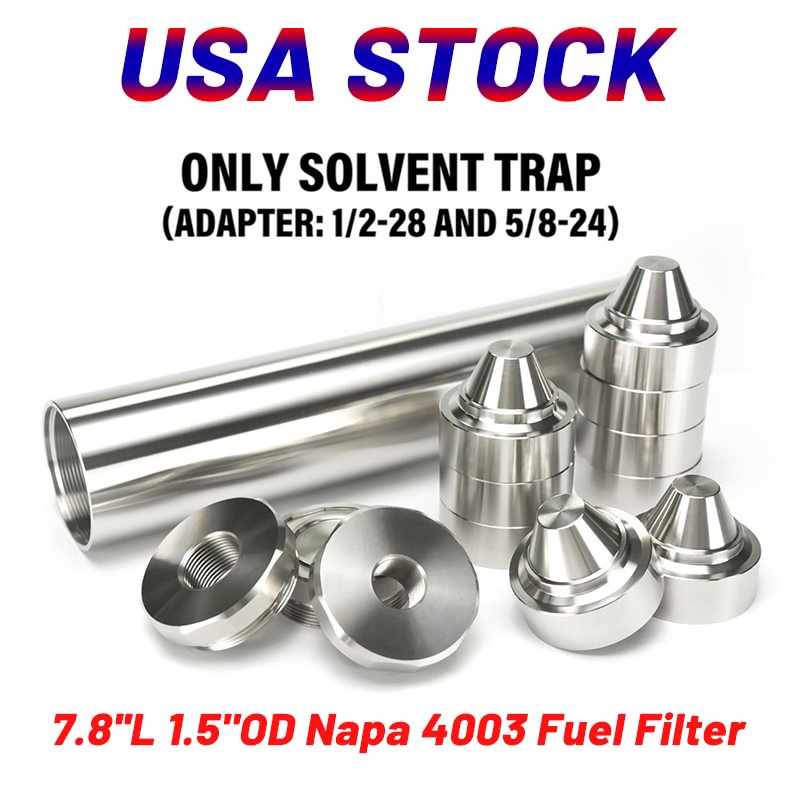

1. This newly designed solvent trap kit utilizes our newest cone 60 degree+110 degree design,thin wall,light weight and large internal space,this is currently the most effective solution.
2. There is no perfect lenth of skirt but that being said 0.5'' is pretty good.
3. And it has a built in spacer in the tube make the chamber more space inside.
4. Color: Silver
5. Material: 17-4 Stainless Steel Tube (17-4 Stainless Steel Cups), ideal for heat treated
6. Outer Diameter: 1.5"
7. Inner Diameter: 1.355''
8. Overall Length: 7.8"
9. Weight: 850g/30oz
10. Size: .450" top face
11. 0.050" thick cone and 0.030'' thick skirt wall.
Compatible with: Industry Standard tube thread,1.375"-24 TPI
Package Included:
1x 17-4 Stainless Steel Tube
9x 17-4 Stainless Steel Cups
3x 17-4 Stainless Steel End Caps ( 1/2x28 + 5/8x24 )
5-8 x 24 Compatible Calibers:
-
.308
-
45 ACP
-
.40
-
30-30
-
30-06
-
300
-
333 Lapua
-
6.5 Grendal
1-2 x 28 Compatible Calibers:
-
.22
-
9mm
-
17HMR
-
5.7x28
-
5.56
-
.223
-
.243
-
.270
Booster:
1. The use of the booster assembly allows your device to properly cycle when the weight of a solvent trap is added to the end of your device.
2.Most semi device with a browning type action (Sig Sauer, HK and etc.) will require a booster to properly cycle.
3.Weight 3.8oz
4.Booster assembly includes piston,For Booster lock out you must read disclaimer before purchase (below).
5.Booster threads are 1-3/16 x 24.
6.For semiauto device only.
7.NO rimfire am mo in this device. It will cause baffle strikes and sluggish operation.
8.Weight: 0.12 lbs
9.Dimensions: 2 x 2 x 2 in
10.Size.1/2 x 28 9mm Cal available
5/8x24, 578×28 .45 ACP, 13.5 x 1 LH , 9/16X24, 16×1 LH,Custom Thread
What are in the booster?
1x Aluminum Black Body
1x Aluminum Black Cap
1x Stainless Steel Spring
1x Stainless Steel Piston
1x Wrench
